XL-3 Crawler Hydraulic Multi-function Construction Drilling Rig
Description:
XL-3 crawler-type full-hydraulic multifunction Construction drilling rig is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.
Application:
Applicable to different construction the railways, highways, bridges, dam foundations, and various industrial and civil building foundation treatment and reinforcement of jet grouting construction; Anchorage engineering of foundation pit support; Matching with air compressor and pneumatic DTH hammer, it can be used for pipe drilling, general rotary spraying (swing spraying, fixed spraying) engineering construction, but also for shallow hole drilling, engineering survey drilling, and other engineering construction.
Technical Data:
| Mode | XL-3 |
| Diesel Engine | brand: Cummins | model No.:4BTA3.9-C125 |
| electric power: 93kw | speed:2200 r/mp |
| Weight | 26t |
| Size | Working (mm) | 9000×2800×19000 |
| Transmission (mm) | 8600×2800×3200 |
| Speed | 1km/h |
| Climbing Capacity | 15° |
| Power Head |
| Stroke | 4m |
| Diameter | Ф94mm |
| Feeding Force | 35kN |
| Rapid Lifting | 0～8/0～11.8 m/min |
| Lifting/Pressurizing Speed of Power Head | accurate speed adjustment of rotary jet:0.06～0.8/1.6 m/min |
| Gear Control | Rotate Speed | Maximum Torque |
| 1 | 0～32r/min | 13215Nm |
| 2 | 0～132r/min | 3199Nm |
| 3 | 0～252r/min | 1681Nm |
| 4 | 0～500r/min | 946Nm |
| Rated Lifting Force | 120kN |
| Added Pressure | 60kN |
| Column |
| Stretch | 800m |
| Drill Tower Telescopic Distance | 1500mm |
| Drilling Rig Height | 14m |
| Mast Height | 12m |
| Rob Length | 16m |
| Main Swing Machine Swing Amplitude | -18°～18° |
| Rig Swing Amplitude | -90°～90° |
| Rotation Range of Rig Frame | 360°(hydraulic drive) |
| Hydraulic Chuck | spring clamp, hydraulic open |
|
|

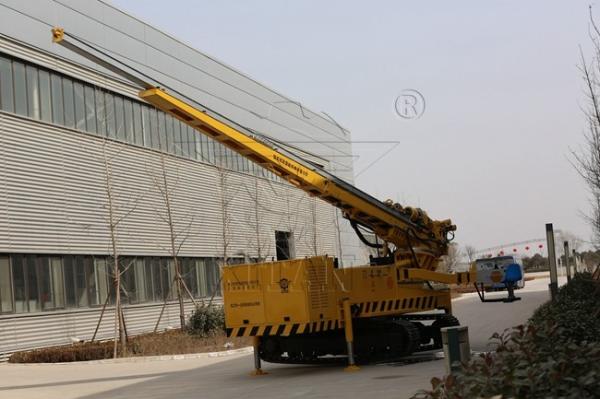

XL-3 Crawler Hydraulic Multi-function Construction Drilling Rig Images
|
