Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan
Description:
Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.
Technical Data:
| Mode | XL-3 |
| Diesel Engine | brand: Cummins | model No.:4BTA3.9-C125 |
| electric power: 93kw | speed:2200 r/mp |
| Weight | 26t |
| Size | Working (mm) | 9000×2800×19000 |
| Transmission (mm) | 8600×2800×3200 |
| Speed | 1km/h |
| Climbing Capacity | 15° |
| Power Head |
| Stroke | 4m |
| Diameter | Ф94mm |
| Feeding Force | 35kN |
| Rapid Lifting | 0～8/0～11.8 m/min |
| Lifting/Pressurizing Speed of Power Head | accurate speed adjustment of rotary jet:0.06～0.8/1.6 m/min |
| Gear Control | Rotate Speed | Maximum Torque |
| 1 | 0～32r/min | 13215Nm |
| 2 | 0～132r/min | 3199Nm |
| 3 | 0～252r/min | 1681Nm |
| 4 | 0～500r/min | 946Nm |
| Rated Lifting Force | 120kN |
| Added Pressure | 60kN |
| Column |
| Stretch | 800m |
| Drill Tower Telescopic Distance | 1500mm |
| Drilling Rig Height | 14m |
| Mast Height | 12m |
| Rob Length | 16m |
| Main Swing Machine Swing Amplitude | -18°～18° |
| Rig Swing Amplitude | -90°～90° |
| Rotation Range of Rig Frame | 360°(hydraulic drive) |
| Hydraulic Chuck | spring clamp, hydraulic open |
RFQ:
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
|
|

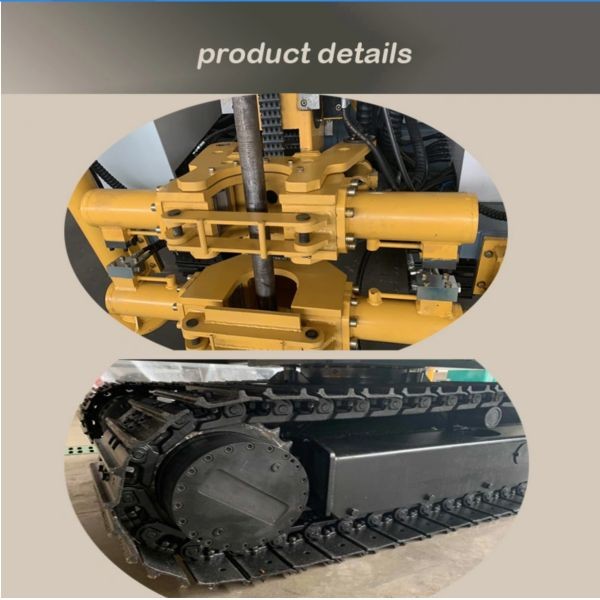

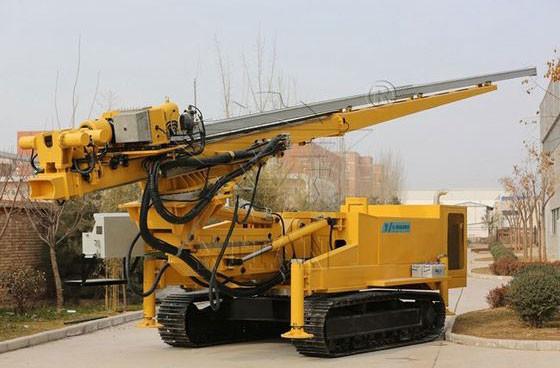

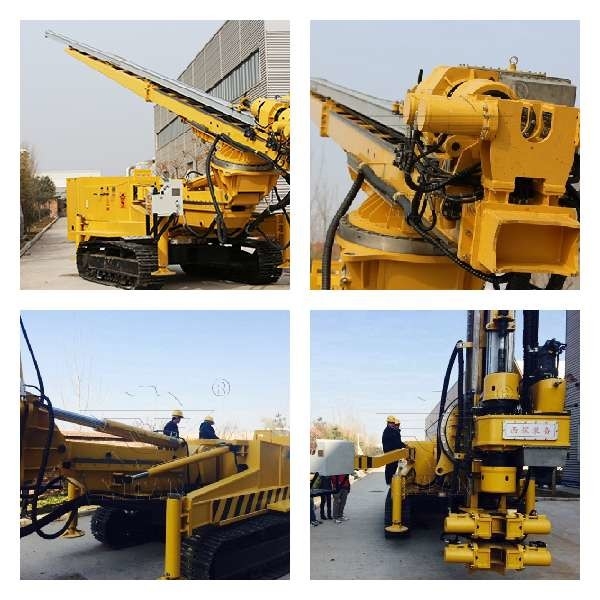

Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan Images
|
